YJY 0.6/1kV Copper Conductor XLPE Insulated PE Sheathed Power Cable
YJY 0.6/1kV copper conductor power cable with XLPE insulation and PE sheath provides safe, durable and efficient low voltage power transmission.
Technical Specifications
| Rated Voltage | 0.6/1kV Low Voltage Power Cable |
| Conductor Material | Annealed Copper Conductor with high electrical conductivity |
| Conductor Class | Class 1 solid conductor or Class 2 stranded conductor (IEC 60228) |
| Insulation System | XLPE insulation providing excellent dielectric strength and thermal stability |
| Outer Sheath | PE (Polyethylene) sheath with excellent moisture resistance and outdoor durability |

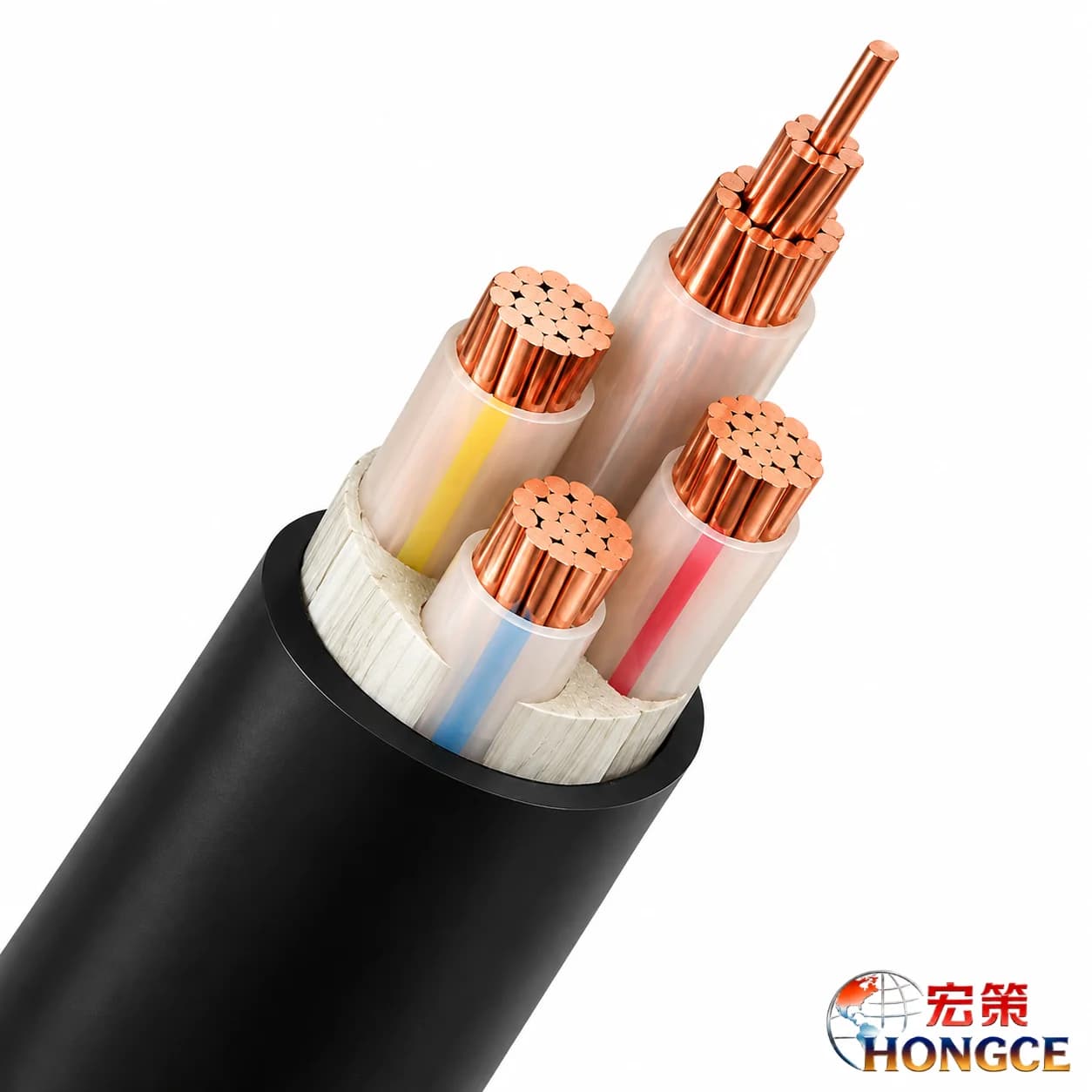

| Cable Structure | Copper Conductor + XLPE Insulation + PE Sheath |
| Standard Compliance | IEC 60502-1 / IEC 60228 / GB/T 12706.1 |
| Continuous Operating Temperature | 90℃ maximum conductor temperature |
| Emergency Short Circuit Temperature | 250℃ maximum (5 seconds) |
| Core Availability | Single Core, 2 Core, 3 Core, 4 Core and 5 Core designs |
| Available Sizes | 1.5mm² to 630mm² |
| Installation Method | Outdoor installation, underground duct, cable trench and fixed installations |
Compliance Standards
- ✓GB/T 12706.1
- ✓IEC 60502-1
- ✓IEC 60228
Overview
YJY 0.6/1kV Copper Conductor XLPE Insulated PE Sheathed Power Cable is designed for reliable low voltage power distribution and electrical transmission. It features high-quality copper conductors, cross-linked polyethylene (XLPE) insulation, and a durable polyethylene (PE) outer sheath, providing excellent electrical performance, heat resistance, moisture protection, and mechanical strength. This cable is widely used in residential buildings, commercial facilities, industrial systems, underground power networks, and infrastructure projects. With stable operation and long service life, YJY cable offers a safe and efficient solution for modern power applications.
Key Features
High Conductivity Copper Conductor
High-quality copper conductor provides excellent conductivity, low resistance, and stable current transmission, reducing power loss and improving efficiency in low voltage power distribution systems.
90°C XLPE Insulation Performance
XLPE insulation delivers excellent electrical performance, heat resistance, and insulation reliability, supporting continuous operation at 90°C and ensuring stable performance in demanding applications.
Durable PE Outer Sheath Protection
PE outer sheath provides excellent moisture, abrasion, and environmental resistance, enhancing mechanical protection and ensuring reliable performance for underground and fixed installations.
Rated for 0.6/1kV Power Distribution
Designed for 0.6/1kV low voltage systems, YJY cable delivers safe and efficient power transmission for residential, commercial, industrial, and infrastructure applications.
Reliable Safety and Long Service Life
The copper conductor, XLPE insulation, and PE sheath structure provide excellent durability, aging resistance, and long-term reliability for stable electrical operation.
Widely Used in Multiple Installations
Suitable for buildings, factories, power plants, and underground networks, YJY cable provides reliable power transmission with excellent electrical and mechanical performance.
Applications

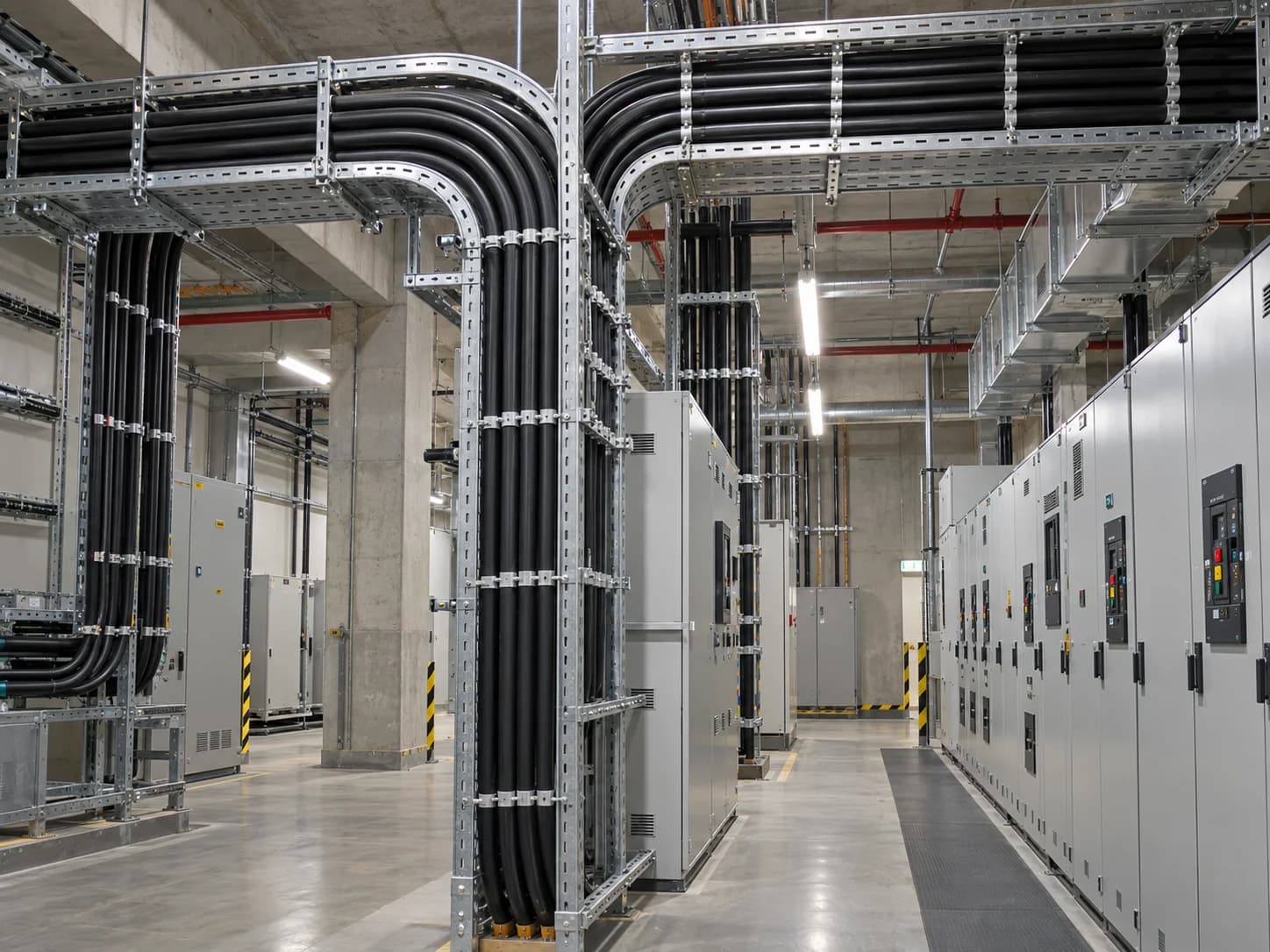

Commercial Building Power Distribution
YJY cable widely installed in electrical rooms and cable trays for safe and efficient low voltage power distribution.

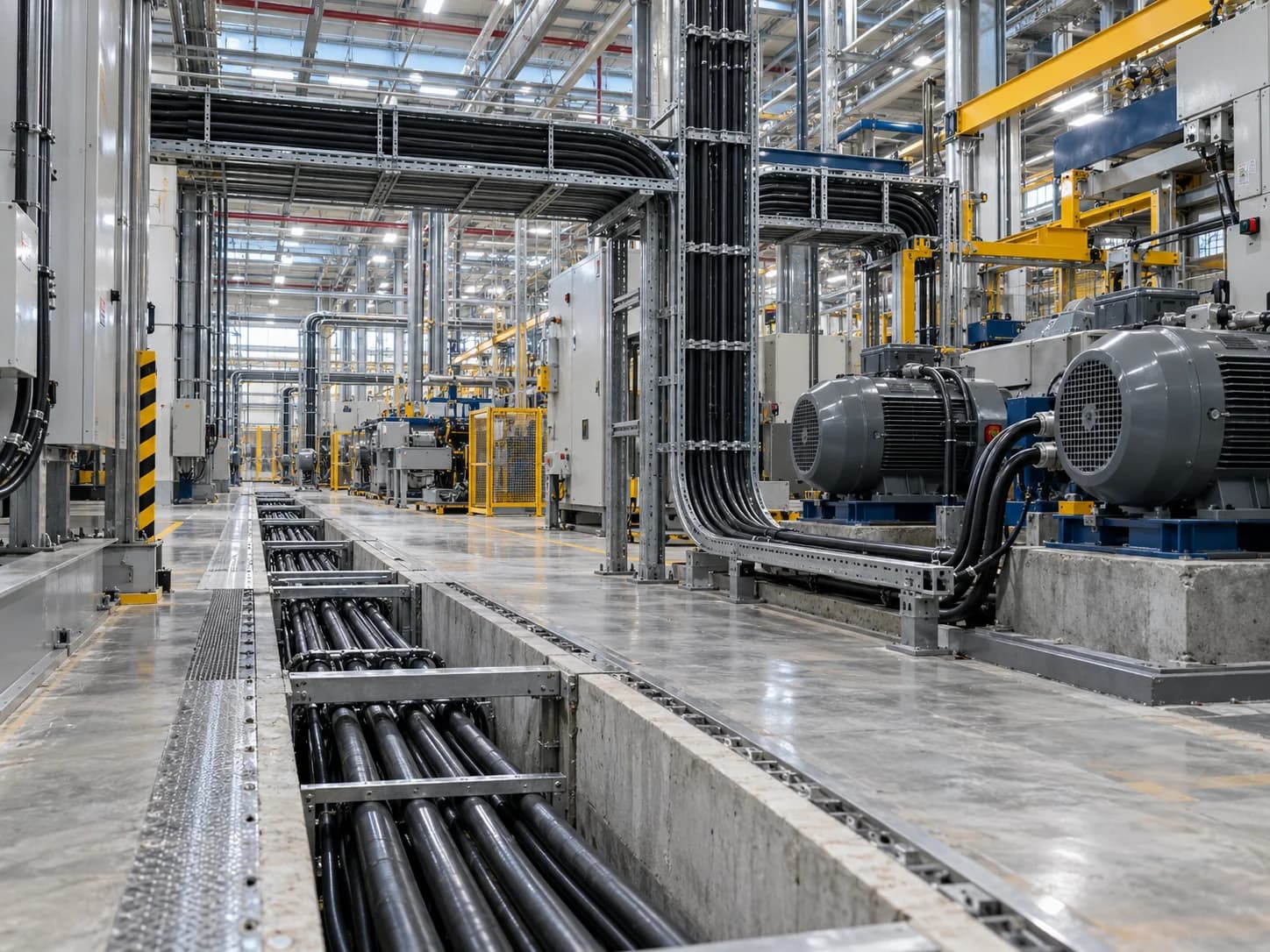

Industrial Facility Power Supply
YJY cable supports reliable power supply for factories, manufacturing plants, and industrial equipment. Its durable XLPE insulation and PE sheath ensure stable operation in demanding environments.

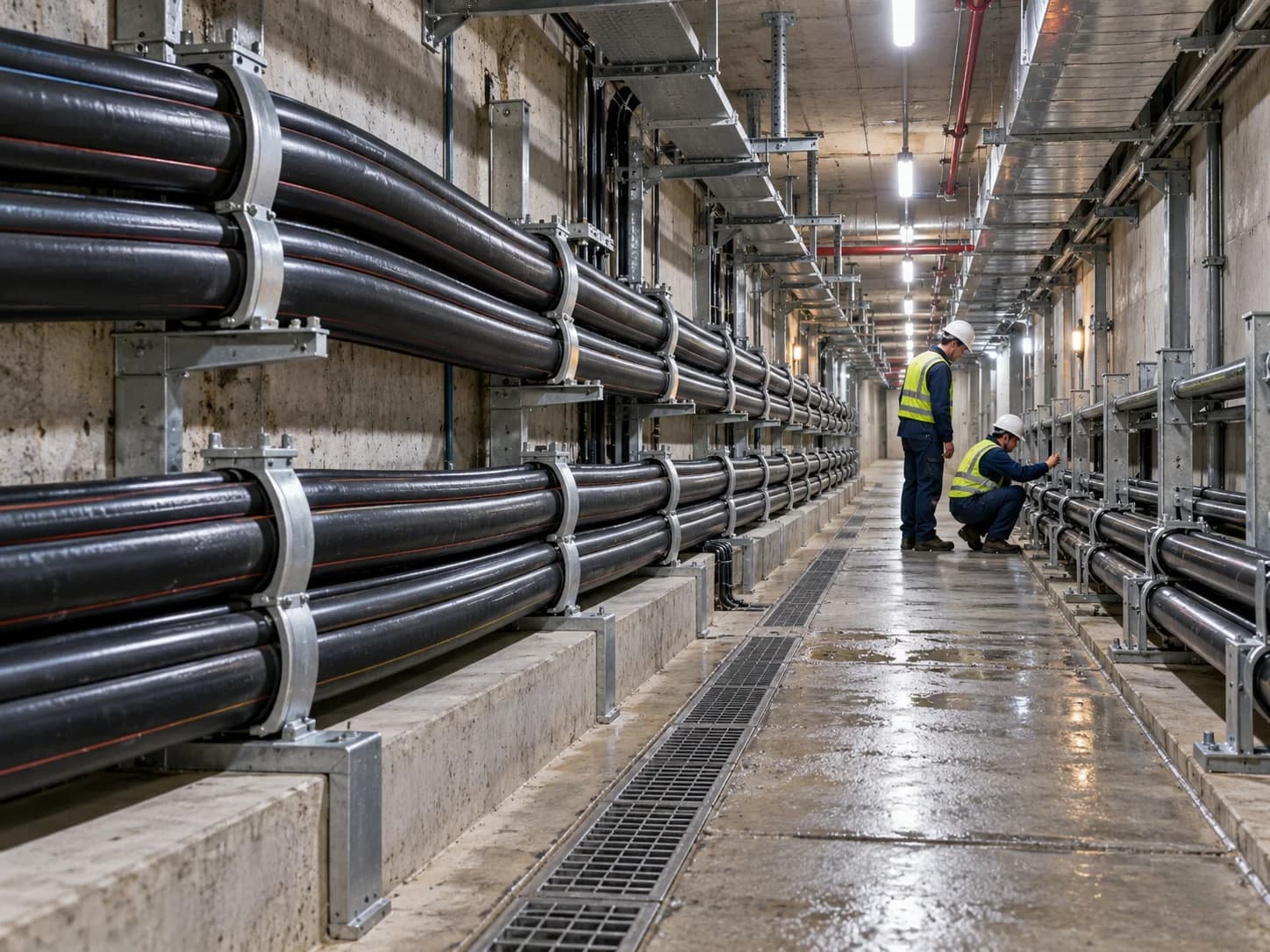

Underground Power Network Installation
YJY cable is designed for underground cable systems and urban infrastructure projects. The PE sheath provides moisture resistance and mechanical protection for long-term reliable power transmission.

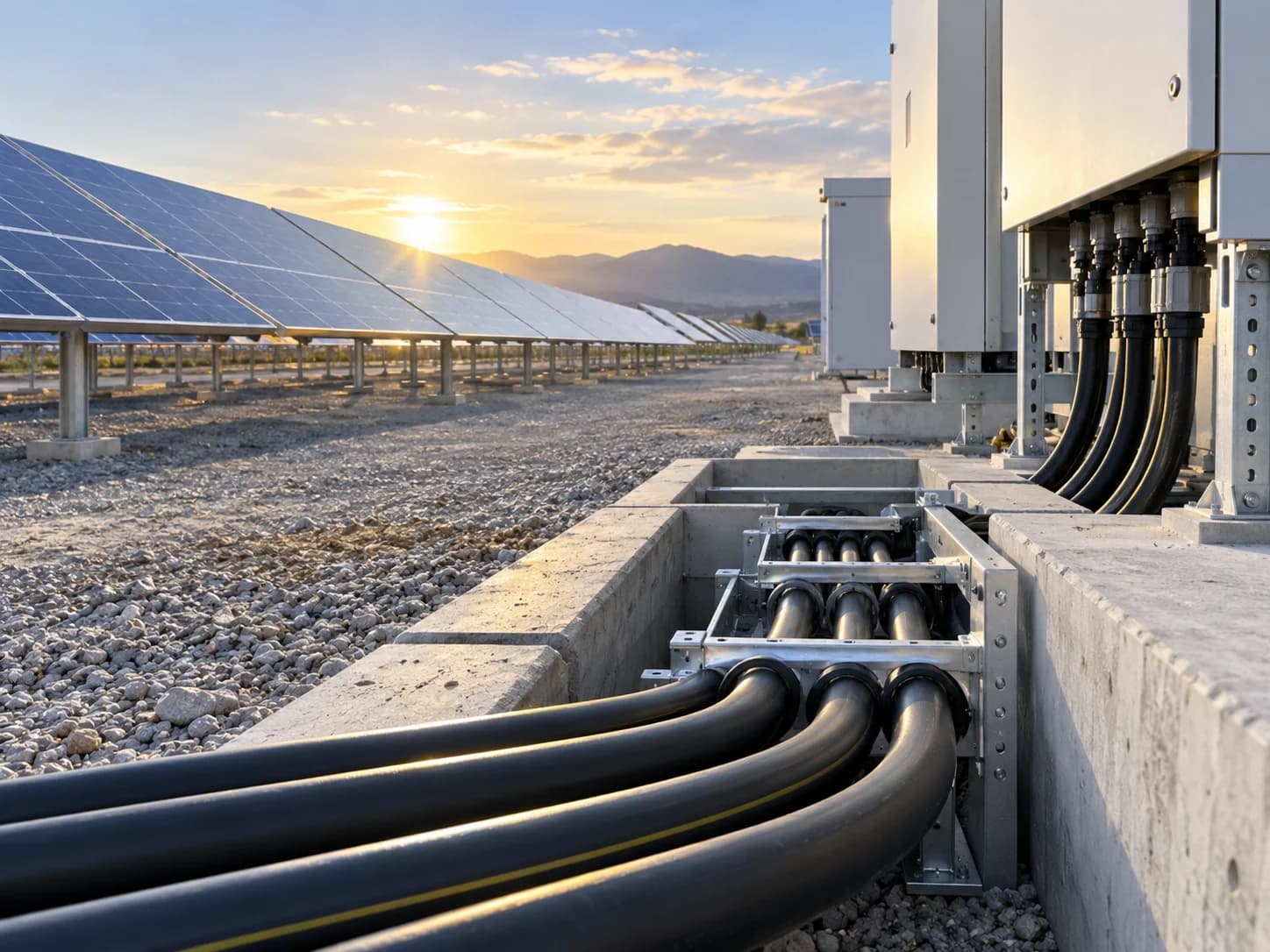

Renewable Energy Power Connection
YJY cable delivers reliable power connections for solar plants and renewable energy projects. It ensures efficient energy transmission with excellent insulation performance and long service life.
