YJV32 0.6/1kV Copper XLPE Steel Wire Armored PVC Sheathed Power Cable
YJV32 0.6/1kV copper XLPE insulated steel wire armored PVC sheathed power cable offers excellent mechanical protection, high conductivity, and reliable performance for underground and industrial power applications.
Technical Specifications
| Rated Voltage | 0.6/1kV Low Voltage Power Cable |
| Conductor Material | Copper Conductor |
| Conductor Class | Class 1 solid or Class 2 stranded conductor |
| Insulation System | XLPE insulation |
| Armoring Type | Steel Wire Armor providing tensile strength and mechanical protection |
| Outer Sheath | PVC sheath |

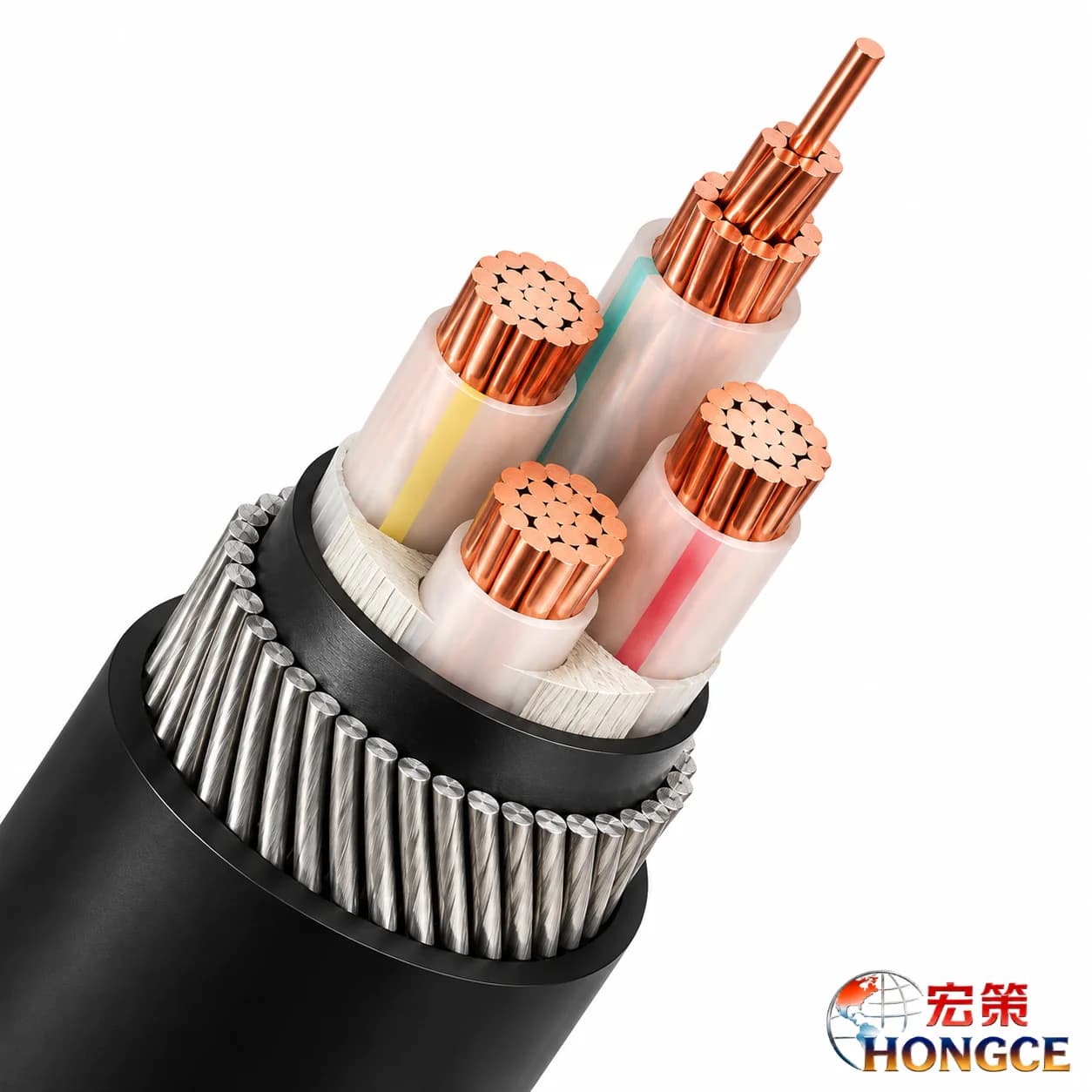

| Cable Structure | Copper Conductor + XLPE Insulation + Steel Wire Armor + PVC Sheath |
| Standard Compliance | IEC 60502-1 / IEC 60228 |
| Operating Temperature | 90℃ maximum conductor temperature |
| Short Circuit Temperature | 250℃ maximum (5 seconds) |
| Available Sizes | 10mm² to 630mm² |
| Installation Method | Vertical installation, shafts, outdoor and mechanically demanding environments |
Overview
YJV32 0.6/1kV Copper XLPE Steel Wire Armored PVC Sheathed Power Cable is designed for reliable low-voltage power transmission in demanding environments. Featuring high-purity copper conductors, cross-linked polyethylene (XLPE) insulation, steel wire armoring, and durable PVC outer sheath, it provides excellent electrical performance, mechanical strength, and resistance to moisture, impact, and harsh conditions. This armored cable is widely used for underground installations, industrial facilities, power distribution systems, and outdoor applications where enhanced protection and long service life are required. Manufactured according to international standards, YJV32 cable ensures safe operation, stable performance, and cost-effective energy solutions.
Key Features
High Conductivity Copper Conductor
Uses high-quality copper conductors with excellent electrical conductivity, ensuring efficient power transmission, low energy loss, and stable operation in low-voltage power systems.
Durable XLPE Insulation
Cross-linked polyethylene (XLPE) insulation provides excellent electrical insulation performance, heat resistance, and long-term reliability under various operating conditions.
Strong Steel Wire Armoring
Steel wire armored structure delivers superior mechanical protection, improving resistance to impact, tension, and external damage for underground and harsh environments.
Weather Resistant PVC Sheath
High-quality PVC outer sheath offers protection against moisture, abrasion, and environmental factors, extending cable service life in outdoor installations.
Reliable Low Voltage Power Transmission
Designed for 0.6/1kV power distribution applications, providing safe, stable, and efficient electrical performance for industrial, commercial, and infrastructure projects.
Wide Application Capability
Suitable for underground cable networks, power plants, industrial facilities, buildings, and other applications requiring enhanced protection and dependable energy supply.
Applications

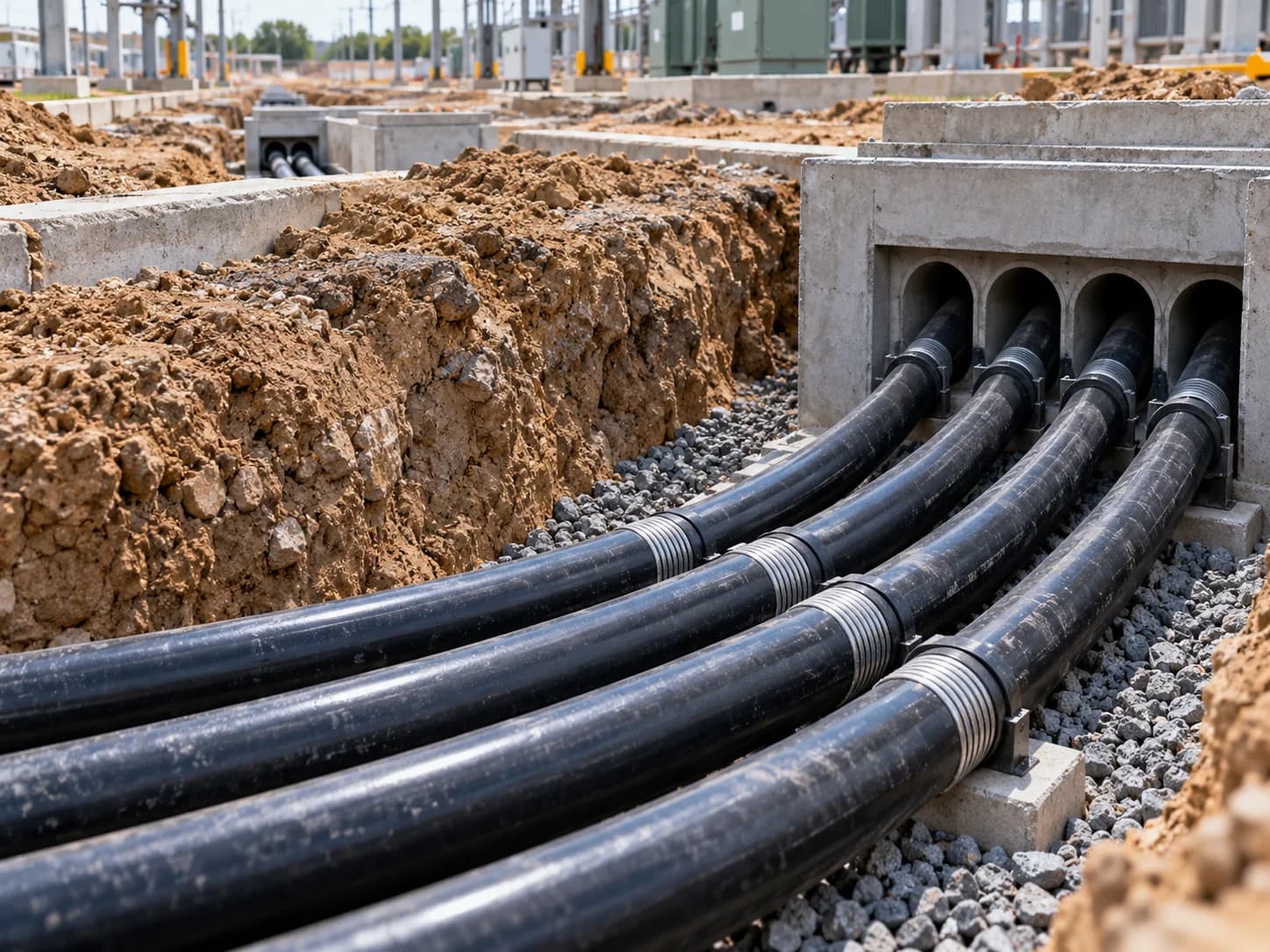

Underground Power Distribution Systems
YJV32 cable is ideal for underground power networks, offering strong mechanical protection, moisture resistance, and reliable power transmission in buried cable installations.

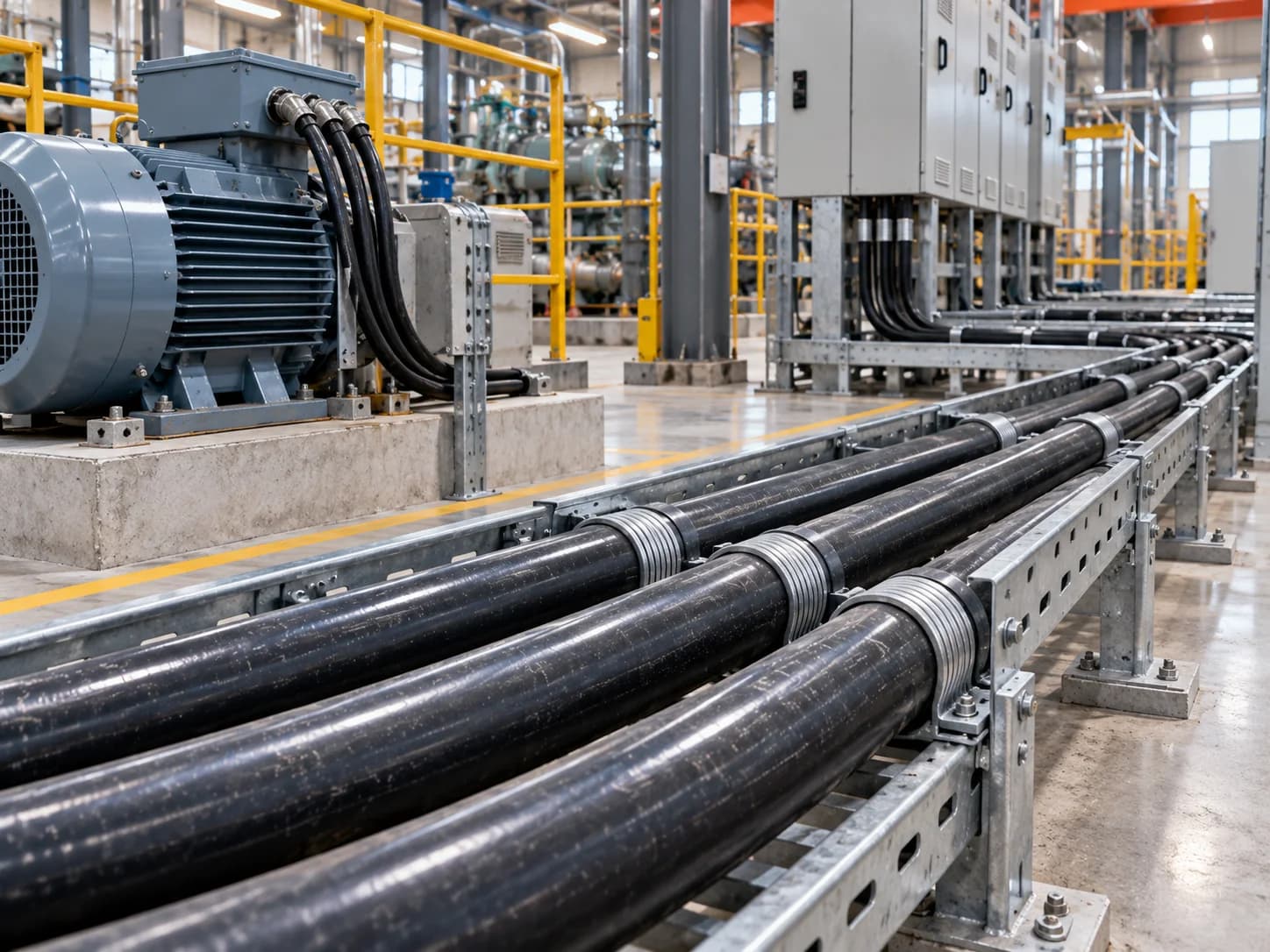

Industrial Facilities and Factories
YJV32 cable provides stable power supply for factories, workshops, and industrial equipment, delivering excellent durability and protection in demanding operating environments.

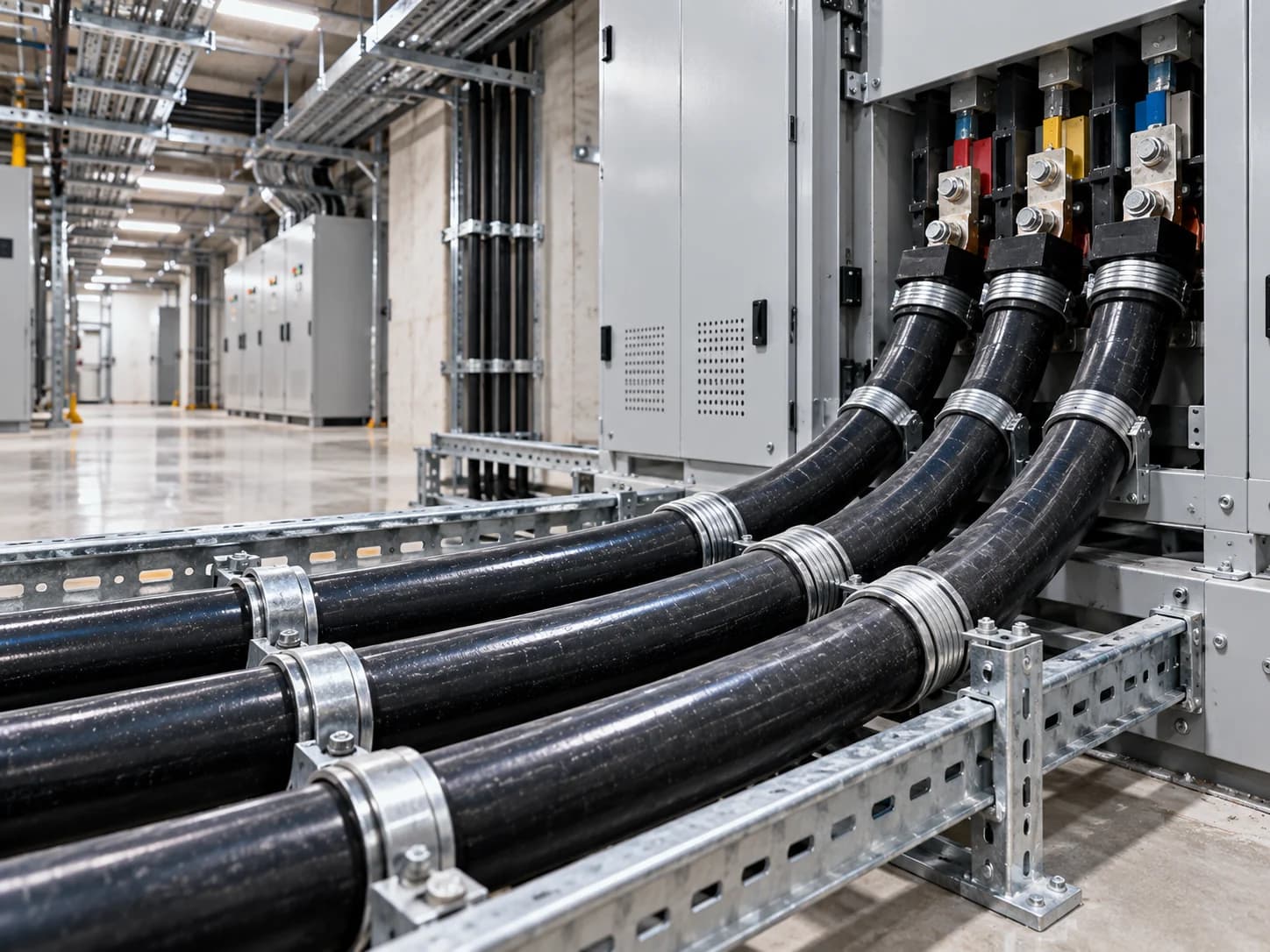

Commercial Buildings and Infrastructure
Designed for commercial and infrastructure projects, YJV32 cable ensures safe power distribution with long service life and reliable performance in complex installations.

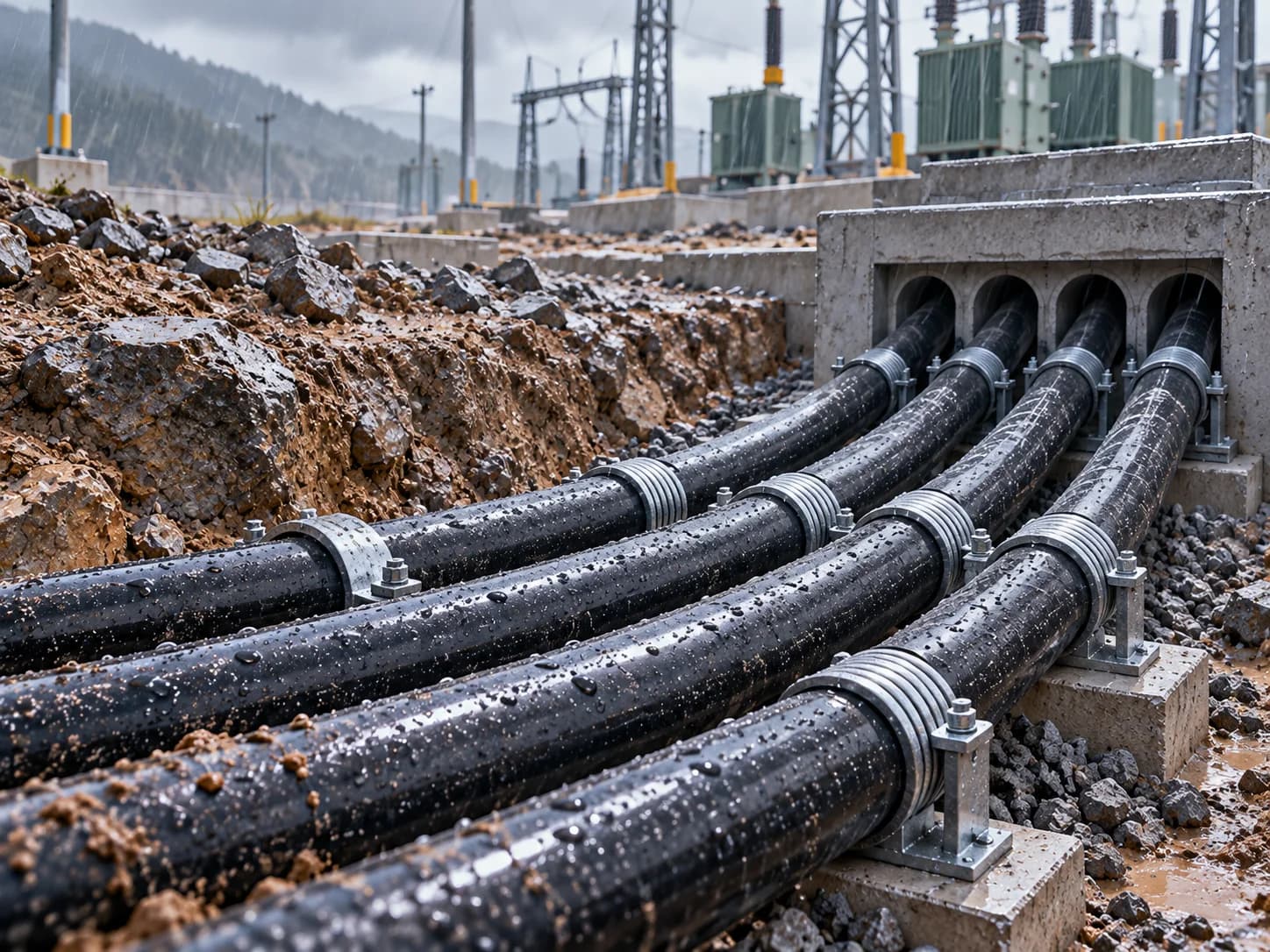

Outdoor and Harsh Environment Applications
With steel wire armor and PVC sheath, YJV32 cable withstands outdoor conditions, mechanical stress, and environmental challenges for continuous power operation.
