YJV22 0.6/1kV Copper XLPE Steel Tape Armored PVC Sheathed Power Cable
YJV22 0.6/1kV Copper XLPE Steel Tape Armored PVC Sheathed Power Cable is designed for customers requiring safe and durable low-voltage power transmission. With high-quality copper conductors, XLPE insulation, galvanized steel tape armor and PVC outer sheath, it provides excellent electrical performance, mechanical protection and long-term reliability for underground, industrial, commercial and infrastructure power projects.
Technical Specifications
| Rated Voltage | 0.6/1kV Low Voltage Power Cable |
| Conductor Material | Copper Conductor |
| Conductor Class | Class 1 solid conductor or Class 2 stranded conductor (IEC 60228) |
| Insulation System | XLPE insulation with high electrical and thermal performance |
| Inner Sheath / Bedding Layer | PVC or equivalent bedding layer for armor protection |
| Armoring Type | Steel Tape Armor providing mechanical protection against compression |
| Outer Sheath | PVC sheath for environmental protection |
| Cable Structure | Copper Conductor + XLPE Insulation + Steel Tape Armor + PVC Sheath |
| Standard Compliance | IEC 60502-1 / IEC 60228 / GB/T 12706.1 |
| Operating Temperature | 90℃ maximum conductor temperature |
| Core Availability | Single Core, 2 Core, 3 Core, 4 Core and 5 Core |
| Installation Method | Direct burial, underground cable systems, cable trenches |
Compliance Standards
- ✓IEC 60502-1
- ✓IEC 60228
- ✓GB/T 12706.1
Overview
YJV22 0.6/1kV Copper XLPE Steel Tape Armored PVC Sheathed Power Cable is a reliable solution for low-voltage power distribution systems where enhanced mechanical protection and long service life are required. The cable is manufactured with stranded copper conductors, XLPE insulation, PVC bedding, double galvanized steel tape armor and a durable PVC outer sheath. This construction provides stable electrical performance while protecting the cable against external mechanical stress, soil pressure and installation damage. For project owners, contractors and cable distributors, YJV22 is an ideal choice for direct buried installations, underground cable trenches, industrial facilities, commercial buildings, power plants and infrastructure projects. The steel tape armor improves cable strength and protection during transportation, installation and operation, while the PVC sheath offers resistance against moisture, abrasion and environmental exposure. The 0.6/1kV rated voltage design makes this cable suitable for low-voltage power supply and distribution applications. Compared with standard unarmored cables, YJV22 offers improved durability and reliability in environments where cables may face mechanical impact or complex installation conditions. With excellent conductivity, thermal stability and robust armored protection, YJV22 helps reduce maintenance requirements and ensures dependable power transmission throughout the service life of the system.
Key Features
High Conductivity Copper Conductor
Premium copper conductor ensures excellent electrical conductivity, stable power transmission and reduced energy loss.
XLPE Insulation for Long-Term Reliability
Cross-linked polyethylene insulation provides excellent thermal stability, insulation performance and resistance to aging.
Steel Tape Armored Mechanical Protection
Galvanized steel tape armor enhances resistance against impact, compression and external mechanical damage, making it suitable for demanding installation environments.
Designed for Underground & Industrial Applications
Ideal for direct burial, cable trenches, industrial facilities, commercial buildings and infrastructure power distribution projects.
Durable PVC Outer Sheath Protection
PVC sheath provides protection against moisture, abrasion and environmental exposure, improving cable service life.
Reliable 0.6/1kV Low Voltage Power Solution
A cost-effective low-voltage power cable choice offering safety, durability and dependable performance for various electrical systems.
Applications

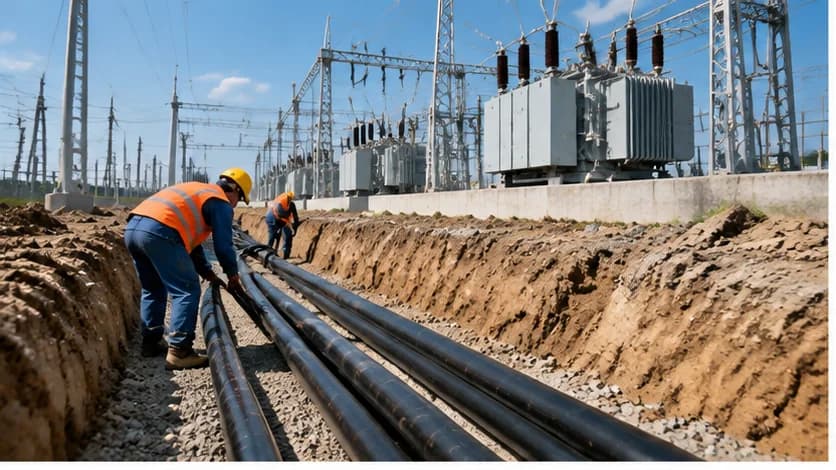

Underground Power Distribution
Direct buried cable installation for reliable power distribution between substations, transformers and buildings.

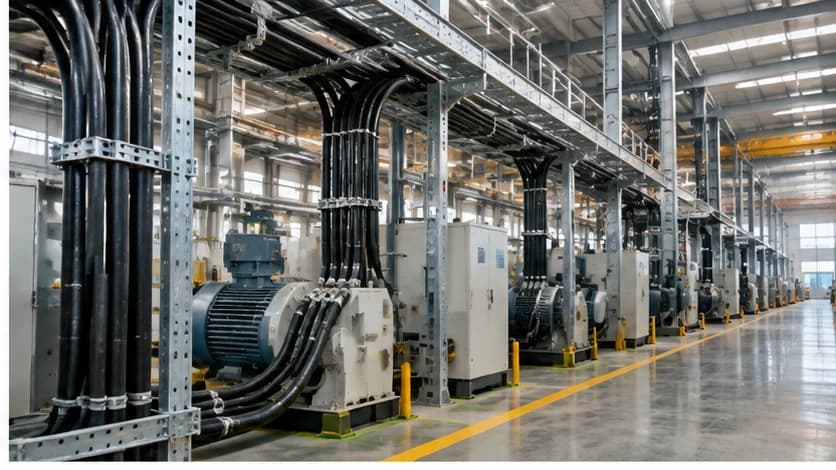

Industrial Power Systems
Designed for factories and industrial facilities requiring durable and stable low-voltage power supply.

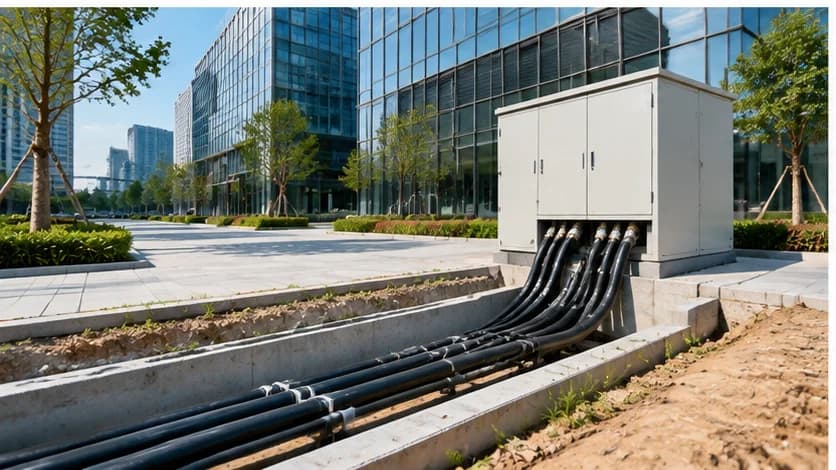

Commercial Building Power Supply
Provides safe underground power connections for commercial buildings, offices and public facilities.

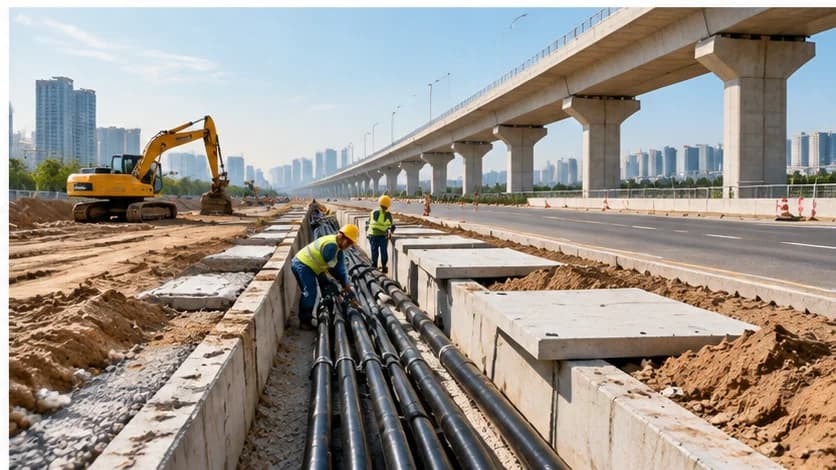

Infrastructure Projects
Suitable for infrastructure projects requiring mechanical protection and long-term cable reliability.
