YJV 0.6/1kV Copper Conductor XLPE Insulated PVC Sheathed Power Cable
YJV 0.6/1kV Copper XLPE Power Cable features excellent insulation performance, high reliability and durability for industrial and commercial power systems.
Technical Specifications
| Rated Voltage | 0.6/1kV Low Voltage Power Cable |
| Conductor Material | Copper Conductor |
| Conductor Class | Class 1 solid conductor or Class 2 stranded conductor (IEC 60228) |
| Insulation System | XLPE insulation providing high dielectric strength and thermal stability |
| Outer Sheath | PVC sheath with resistance to abrasion, moisture and environmental stress |
| Cable Structure | Copper Conductor + XLPE Insulation + PVC Sheath |
| Standard Compliance | IEC 60502-1 / IEC 60228 / GB/T 12706.1 |
| Continuous Operating Temperature | 90℃ maximum conductor temperature |
| Emergency Short Circuit Temperature | 250℃ maximum (5 seconds) |
| Core Availability | Single Core, 2 Core, 3 Core, 4 Core and 5 Core designs |
| Available Sizes | 1.5mm² to 630mm² (Customized sizes available) |
| Installation Method | Fixed installation in buildings, cable trays, ducts and underground systems |
Compliance Standards
- ✓IEC 60502-1
- ✓IEC 60228
- ✓GB/T 12706.1
Overview
YJV 0.6/1kV Copper XLPE Power Cable is a reliable low voltage power transmission solution designed for industrial, commercial and infrastructure electrical systems. Manufactured with high-quality copper conductors, cross-linked polyethylene (XLPE) insulation and durable PVC outer sheath, this cable provides excellent electrical performance, mechanical strength and long service life under various installation conditions. The cable adopts stranded copper conductors with high conductivity to ensure stable current transmission and reduce power losses. The XLPE insulation layer provides superior thermal resistance, insulation stability and excellent resistance to moisture, chemicals and environmental stress. The PVC sheath offers additional protection against mechanical damage, abrasion and external conditions, making the cable suitable for a wide range of applications. Hongce Cable YJV power cables are widely used in low voltage power distribution networks, buildings, factories, commercial facilities, underground cable systems, cable trays and electrical equipment connections. With a rated voltage of 0.6/1kV, the cable complies with international cable manufacturing standards and can be customized according to different project requirements, including conductor size, number of cores and installation methods. As a professional cable manufacturer, Hongce Cable provides high-quality XLPE insulated power cables with strict quality control, advanced production technology and flexible OEM services. YJV 0.6/1kV Copper XLPE Power Cable is an ideal choice for contractors, distributors and engineering companies seeking safe, efficient and cost-effective power transmission solutions.
Key Features
High Conductivity Copper Conductor
Uses high-purity copper conductors with excellent electrical conductivity, ensuring stable current carrying capacity, low power loss and reliable energy transmission.
Superior XLPE Insulation Performance
The cross-linked polyethylene insulation provides excellent dielectric strength, high temperature resistance and long-term insulation stability, ensuring safe operation under continuous load conditions.
Durable PVC Outer Sheath Protection
The robust PVC outer sheath offers good resistance to abrasion, moisture, chemicals and mechanical impact, extending cable service life in various installation environments.
Wide Application Flexibility
Designed for indoor installation, cable trays, conduits, cable trenches and industrial power distribution applications, meeting different project requirements.
Reliable Long Service Life
Manufactured with advanced production technology and strict quality control, YJV cable delivers excellent durability, thermal stability and consistent performance throughout its service life.
International Standard Manufacturing
Produced according to IEC 60502-1 and relevant international requirements, supporting customized specifications for global electrical projects.
Applications

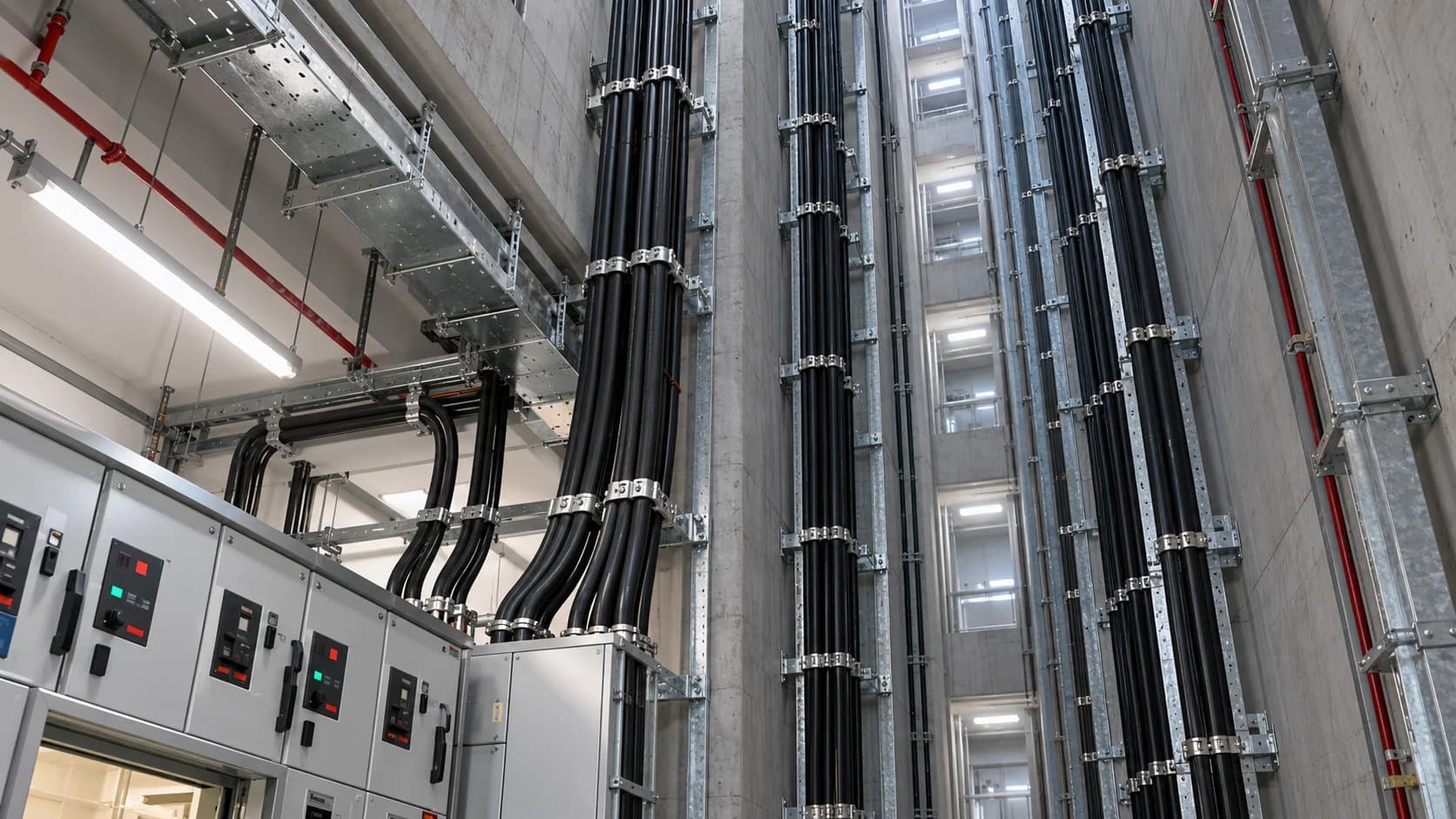

High-Rise Building Riser Feeder Systems
YJV 0.6/1kV Copper XLPE Power Cable provides reliable vertical power distribution from main switchgear to floor panels in high-rise residential and commercial buildings.

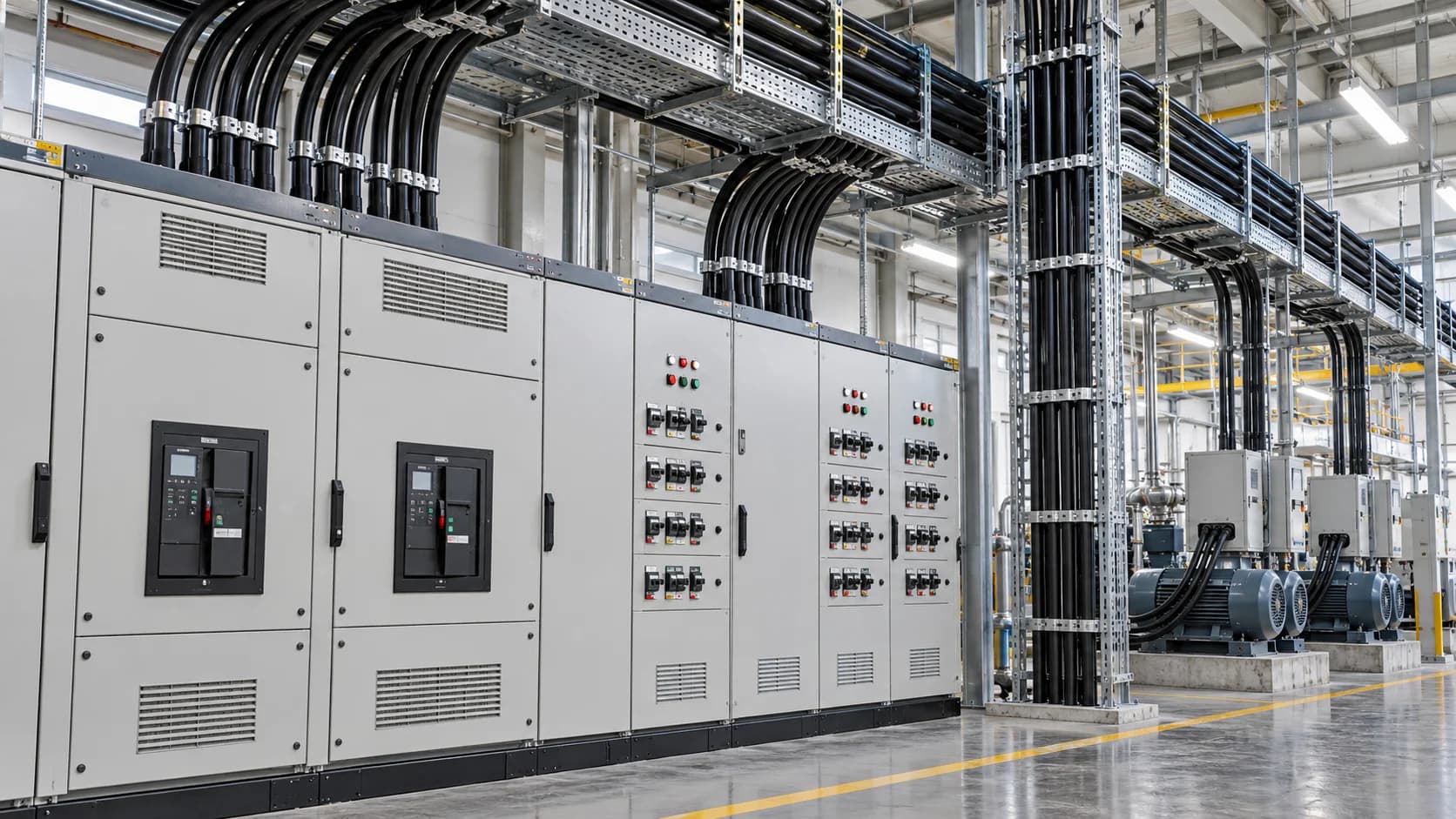

Industrial Power Distribution Systems
YJV 0.6/1kV Copper XLPE Power Cable ensures stable power supply for factories, switchgear, motors and industrial equipment with excellent electrical performance.

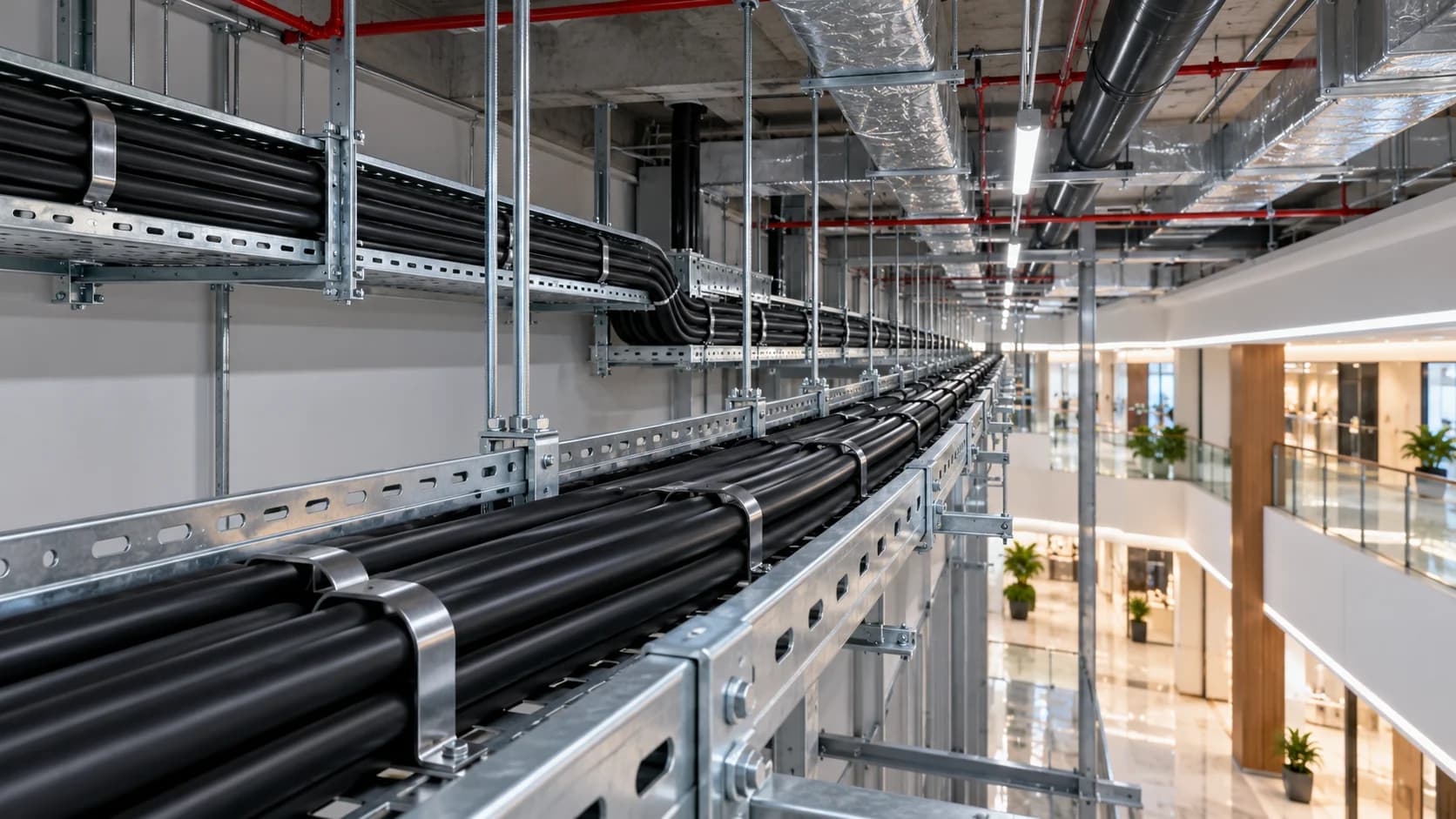

Commercial Building Cable Tray Installations
YJV 0.6/1kV Copper XLPE Power Cable is suitable for cable tray systems in offices, shopping centers and public facilities, offering safe and efficient power distribution.
Underground Cable Duct and Utility Tunnel Networks
YJV 0.6/1kV Copper XLPE Power Cable is suitable for cable tray systems in offices, shopping centers and public facilities, offering safe and efficient power distribution.
