YC 450/750V Heavy-Duty Rubber-Sheathed Flexible Cable
YC is the heavy-duty rubber-sheathed cable for portable power and jobsite use where PVC cable would fail in months. Class 5 fine-stranded copper, ethylene-propylene rubber (EPR) insulation, chloroprene rubber outer sheath. Survives oil splash, repeated coiling, and the kind of mechanical abuse that destroys PVC cable.
Technical Specifications
| Conductor | Annealed copper, Class 5 flexible |
| Insulation | Ethylene-propylene rubber (EPR) |
| Outer sheath | Chloroprene rubber (CR) |
| Rated voltage | 450/750 V |
| Operating temperature | −25 to +90 °C |
| Oil resistance | Yes (CR sheath) |
| Cross-sections available | 1.5 – 95 mm² |
| Core configurations | 2 / 3 / 4 / 5 cores; 3+1, 4+1 |
| Bending cycles | > 1000 verified |
| Typical use | Portable equipment, construction site power |
Compliance Standards
- ✓IEC 60245-4
- ✓GB/T 5013.4
- ✓60245 IEC 66 (YC)
Overview

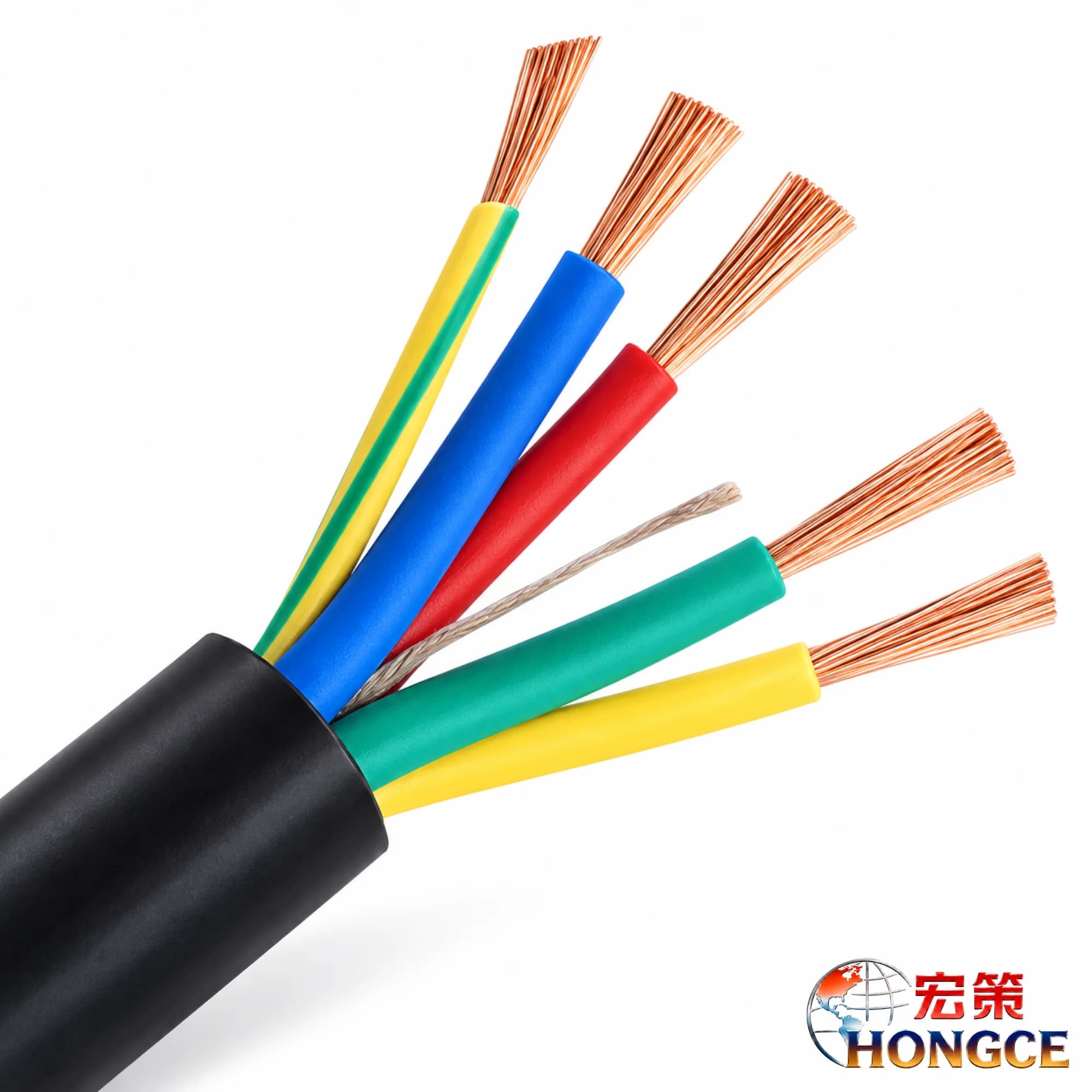

Fine-stranded copper Class 5 conductor (very flexible), EPR insulation (stays supple at −25°C, intact at +90°C), chloroprene rubber outer sheath (abrasion and oil resistant). Standard 2 to 5 core constructions for portable single-phase and three-phase loads. Often specified for construction site power, mobile workshops, portable transformers, and outdoor equipment that gets coiled away after each shift.
Key Features
Oil-resistant CR sheath
Chloroprene rubber outer sheath resists hydraulic oil, lubricant, and most jobsite chemical exposure — PVC cable lasts months in the same conditions.
Wide-temperature flexibility
EPR insulation stays flexible at −25°C — usable in air-conditioned warehouse loading bays and cold storage facilities.
Applications
Construction site portable power
Mobile generators, portable transformers, temporary site distribution.
Mining and quarry equipment
Reeling cables on continuous miners, drag-line excavators, port-side cranes.
